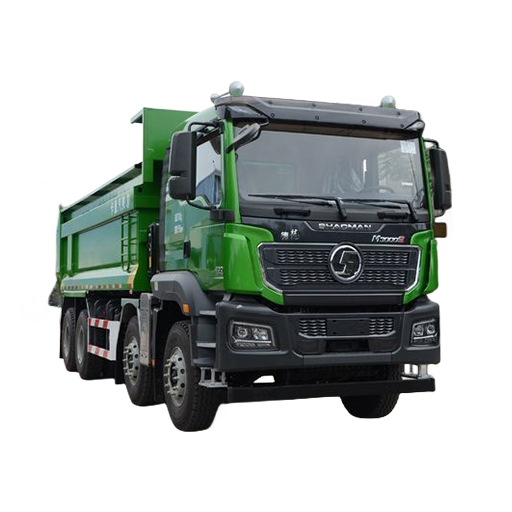

Shacman Electric Dump Truck M3000S

SX3310M4306N1 dump truck complete vehicle green

M3000S standard cab

410KW permanent magnet synchronous motor

Drum-type front axle, drum-type drive axle-6.72/422.87KW·h lithium iron phosphate power battery/6E240-iron shell-QH50/850×300(8+5)/1800+2975+1400/front and rear multi-leaf springs (four Main film + four horseback riding)

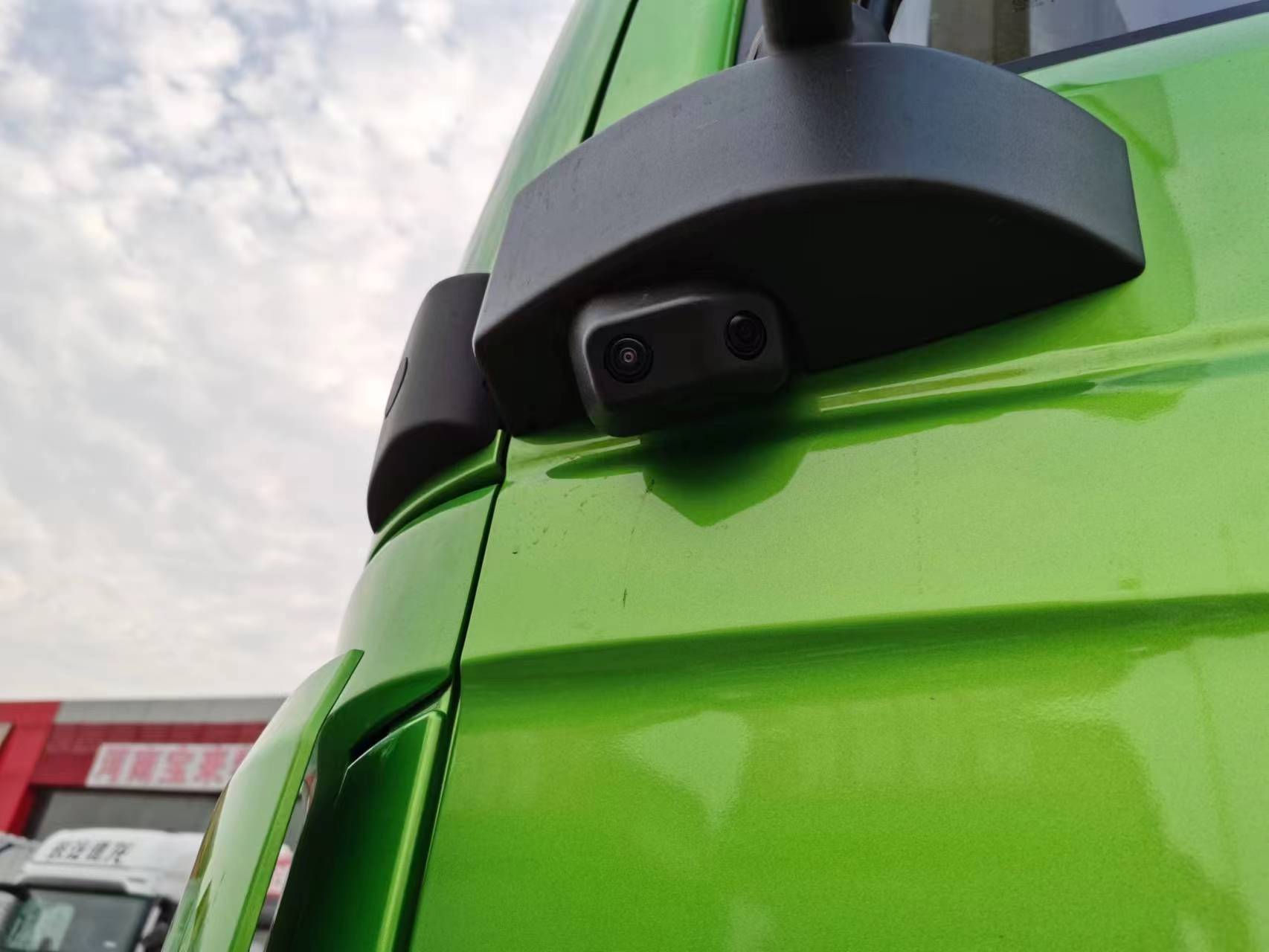

Tires 11.00R20/Hydraulic suspension/Air main seat/Electric window shaker/Electric flip/Electronically controlled automatic constant temperature air conditioner/PTC heater/Maintenance-free battery/Two-level entry steps/Water tank protective grille/Reinforced drive shaft/three Segmented metal bumper/central locking/electric flip/four-directional image+LED screen/LED headlight/EBS/AUTOHOLD/

Cargo box internal dimensions (mm) 5600×2300×1200mm;

High-strength wear-resistant plate/bottom 7 sides 5/Haiwo 149# cylinder front lift/front and rear opening iron cover/U-shaped box/rear door with sealing device
